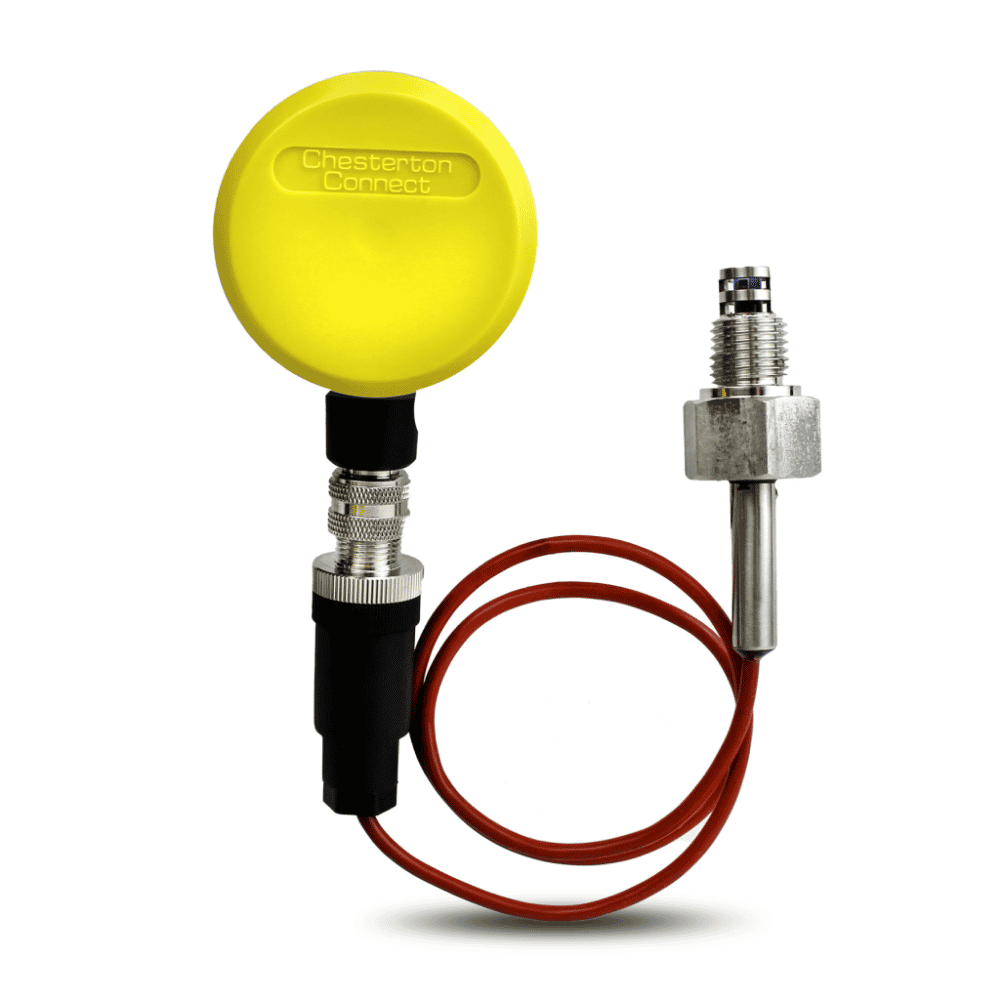

The Chesterton Connect Humidity Link offers real-time monitoring of humidity levels in hydraulic oils, lubricating oils, and compressed air systems. By detecting moisture before it leads to corrosion, oxidation, or reduced lubrication efficiency, this sensor helps prevent unplanned downtime and costly equipment failures. The sensor is battery-powered and features 1/2" FNPT fittings for easy in-line installation. Utilizing the Chesterton Connect™ Gateway, the Humidity Link displays the measured parameters in the Chesterton Connect™ Cloud, facilitating historical data trends and 24/7 notifications when user-defined thresholds are exceeded. Applications: Gearboxes and Motors: Essential for monitoring oil quality in critical machinery. Industrial Equipment — Airlines: Ideal for use in environments where equipment reliability is crucial. Seal Barrier Fluid Systems: Monitoring humidity levels to maintain the integrity of the fluid and ensure optimal sealing performance.
- A folyamat instabilitásainak korai észlelése
- Javítja a karbantartási műveleteket
- Biztonságos hozzáférés az adatokhoz
- Easy installation and configuration
- Versatile Monitoring
Product Characteristics Parameters
| I2C Link Operating Parameters | Humidity Sensor Operating Parameters | ||
| Housing Material | Polycarbonate with UV inhibitor | Housing Material | Stainless steel 1.4571 |
| Magnet | NdFeB, Grade N42, 8.68 lb pull force | Process Connection | M14 x 1.5 |
| Mounting | Magnet or optional cradle | Humidity Range | 0% – 100% RH |
| Battery | CR2477X-HE lithium manganese dioxide non-rechargeable battery | Operating Temperature Range | -40°C – 120°C (-40°F – 248°F) |
| Lifetime | 2+ years at ambient temperature | Accuracy | +/- 3% RH @23°C (73 °F), +/- .2°C (+/- .36°F) |
| Power | Optional DC power accessory cable assembly | Repeatability | +/-.2% RH, +/- .1°C (+/- .18°F) |
| Wireless | Bluetooth® Low Energy 5.0 | Resolution | .03% RH, .015°C (.027°F) |
| Interface | Push button for activation, LED feedback | Hysteresis | < +/-1% RH @23°C (73°F) |
| Electrical Connection | 5 position female M12, A code, PVC overmold | Electrical Connection | 5 position male M12, A code |
| Certifications | IP66, FCC, IC, CE, RoHS | Fluid Compatibility | Common mineral oils, ester oils, air |
